1971 Bay Window with Ford 1.8 Turbo Diesel

[jp]

A Long overdue update as I thought I better upload some pics from last year (early last year looking at the dates on the pics oops)


OK last update I was somewhere in the middle of this...



I managed to get the engine running but it was a little up and down on the revs.. this maybe due to the fact I have an EGR module missing which a lot of things seem to connect too but hopefully not as I've lost the will trying to find the missing module.

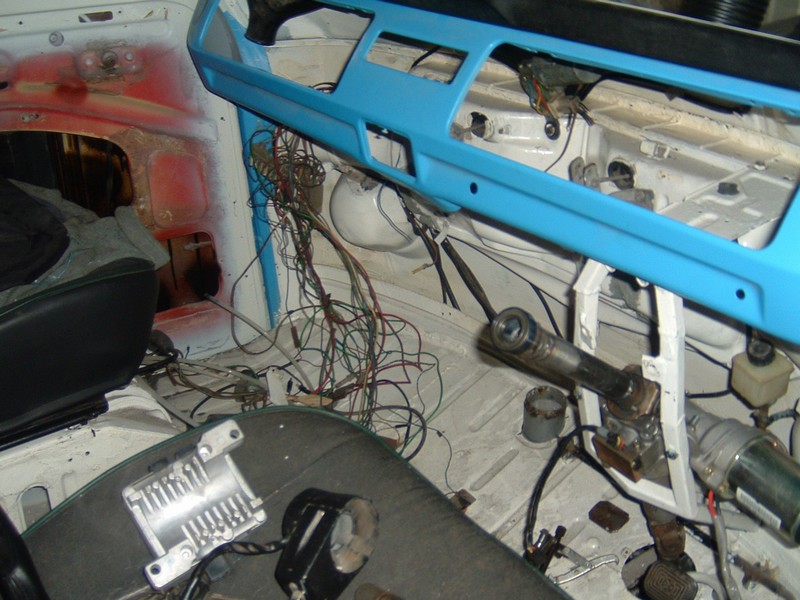

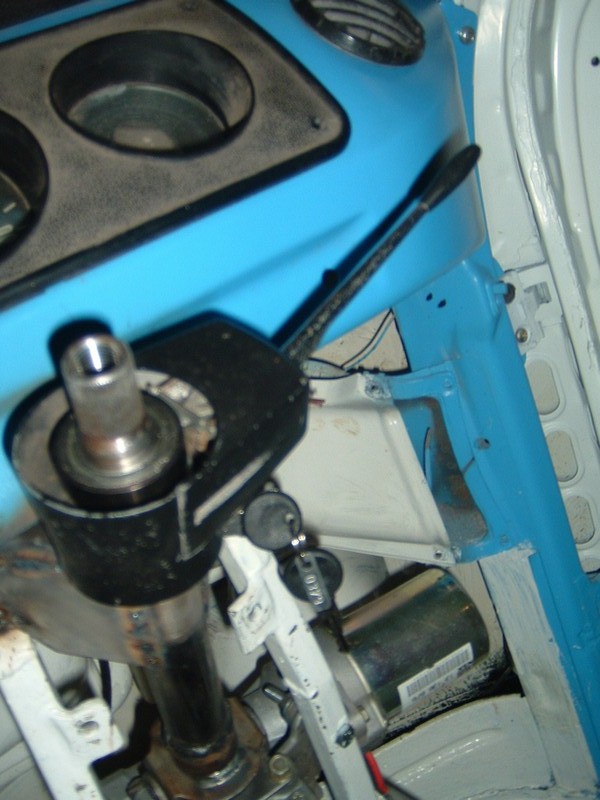

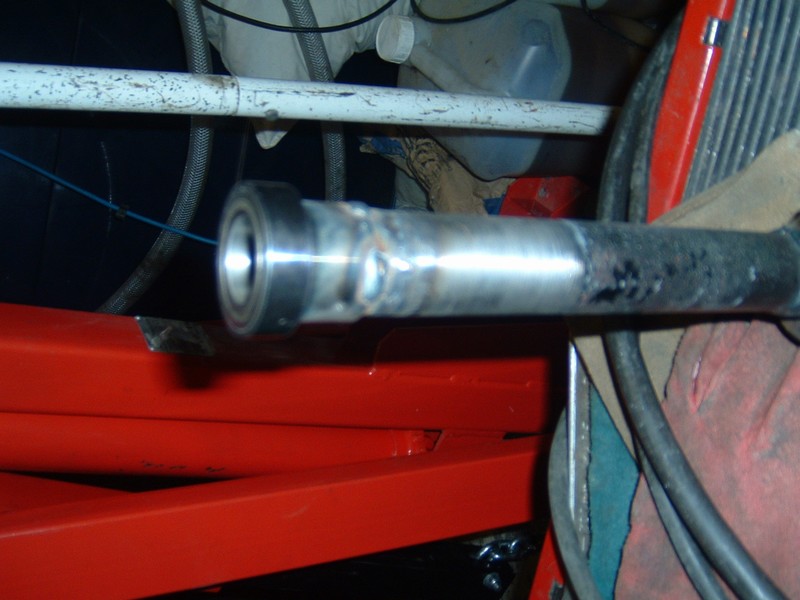

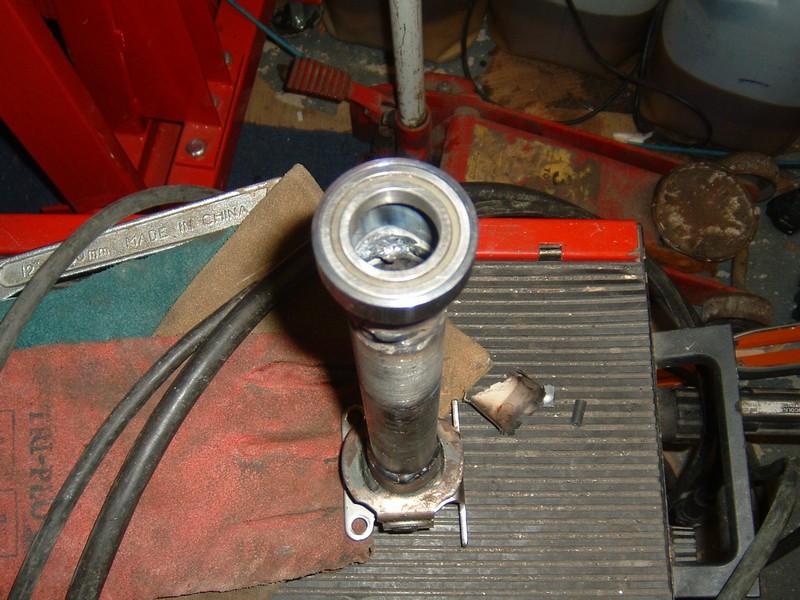

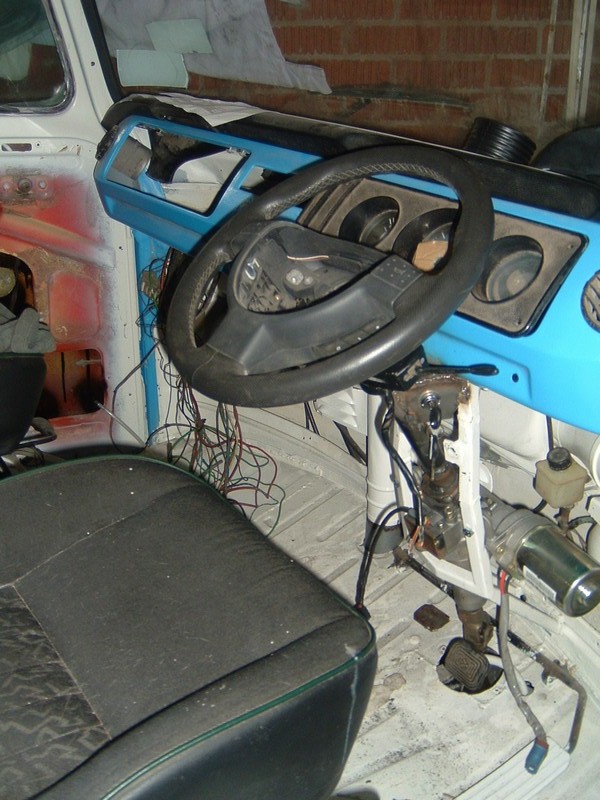

Next up was sorting the steering column on the EPS.. my aim is to try and keep the column as simple as possible retaining the orig stalks etc.. I had a holder made by my local machine shop to house the top bearing and have the correct OD for the indicator stalks to clamp to..

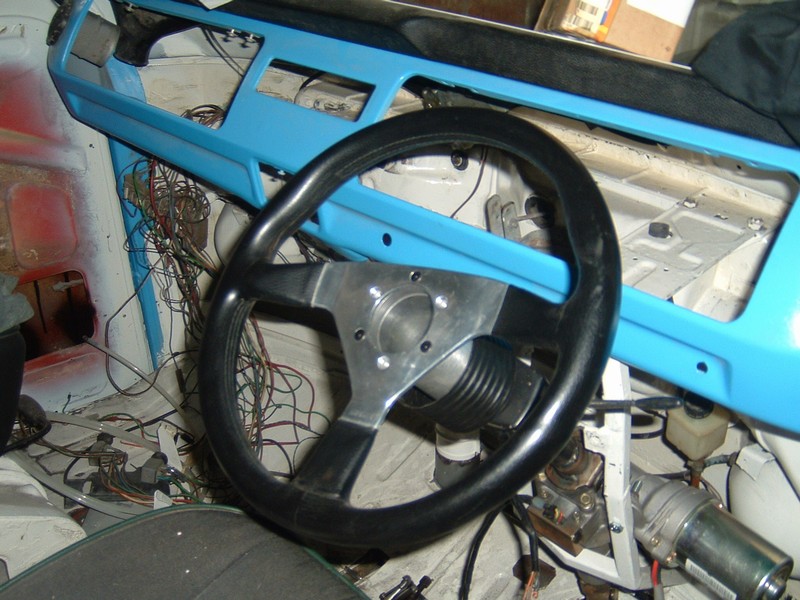

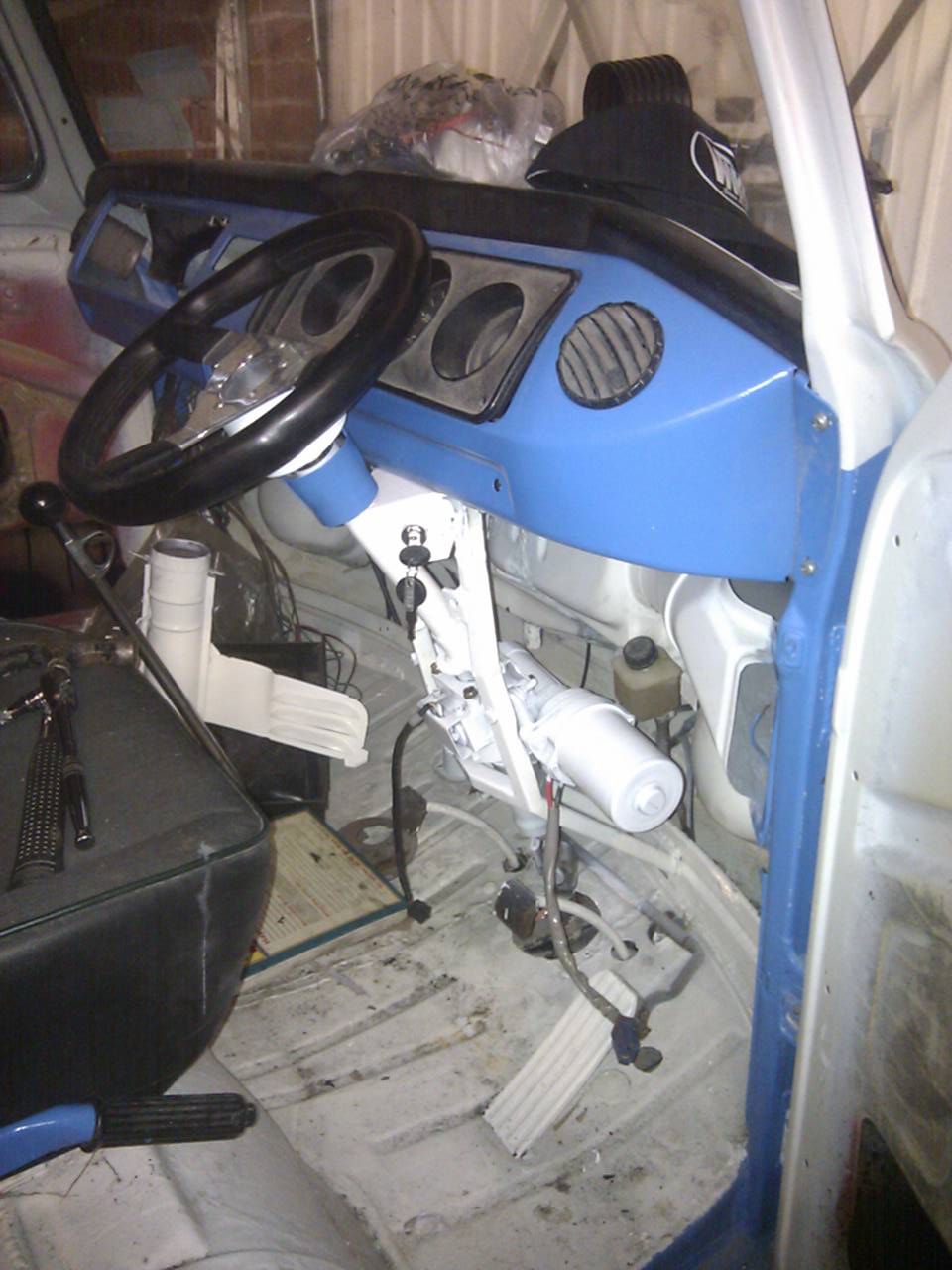

With the wheel on




Neat little ignition set up made by rb78

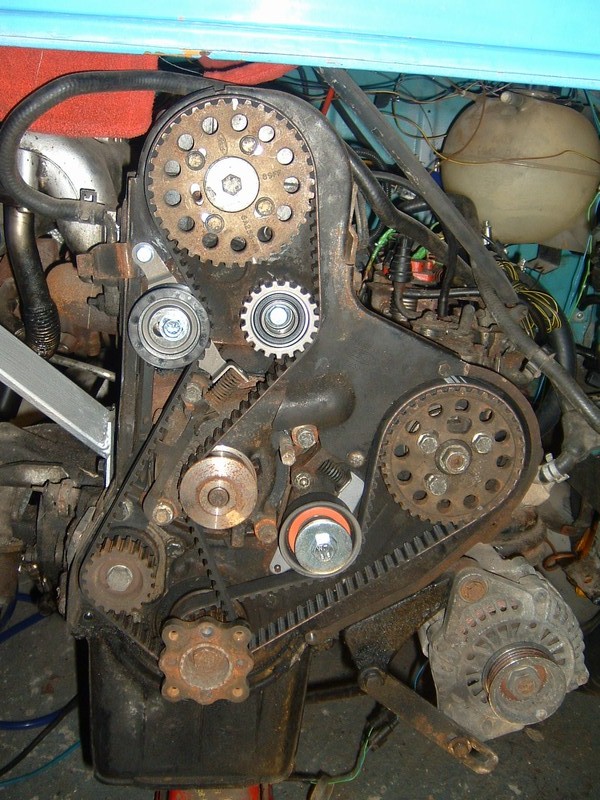

New Cam belt.. soooo easy with the way the engine mounts in these babies

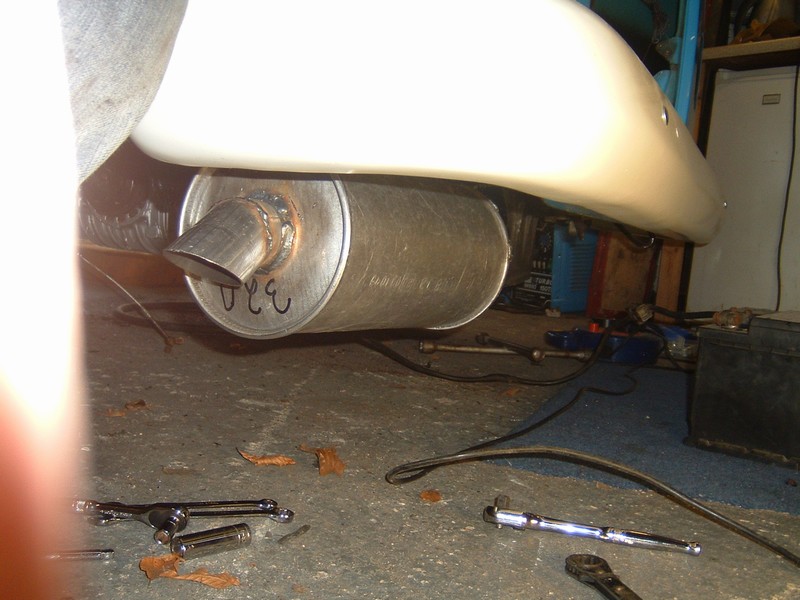

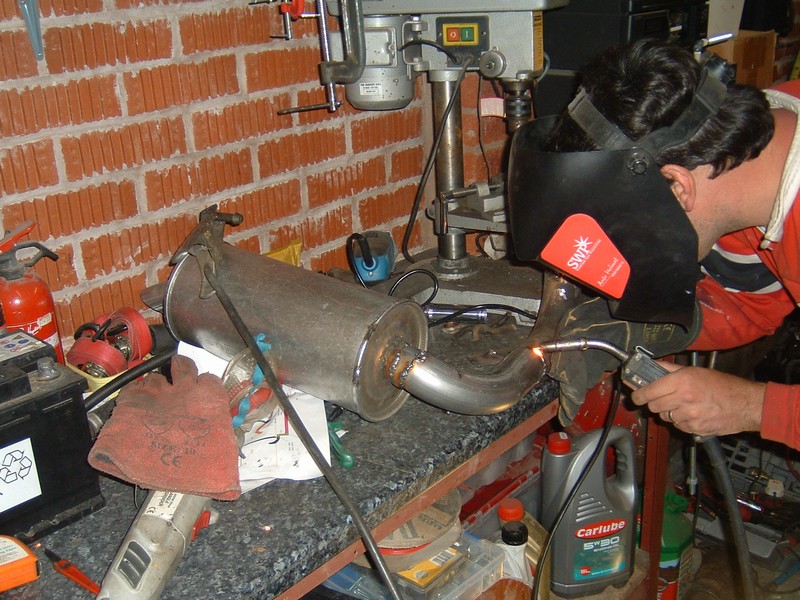

New Exhaust using a back box from a 1990 Sierra.. nothing fancy for the dirty derv hopefully tucked away and keep the noise down

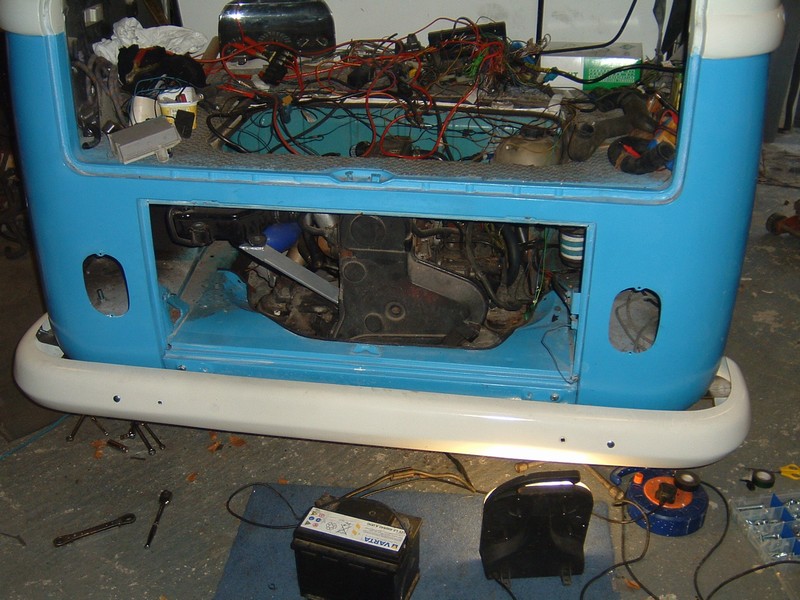

All out of sight with valance and bumper on

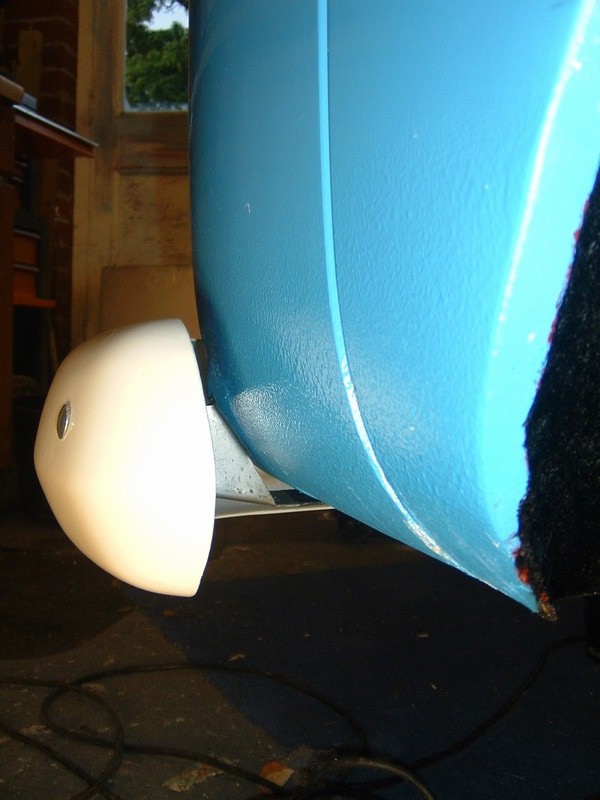

Also fitted some 'drip trays' that some guy on early bay was making/selling which seem to work a treat and stop droopy bumper.

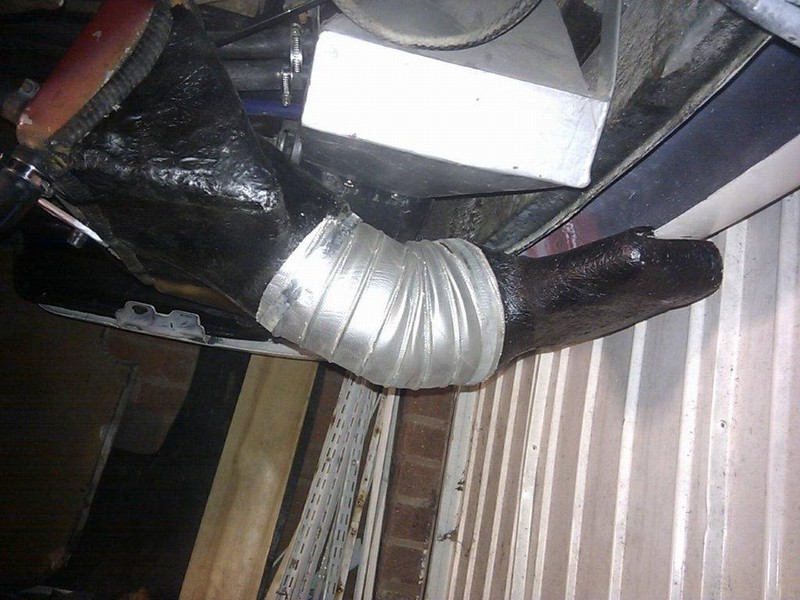

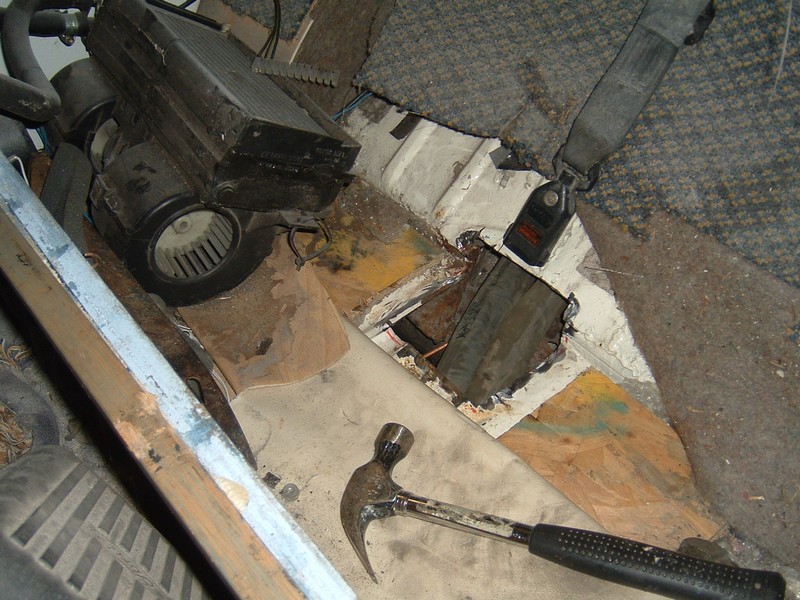

Hole made to make way for pipe work over the torsion tube

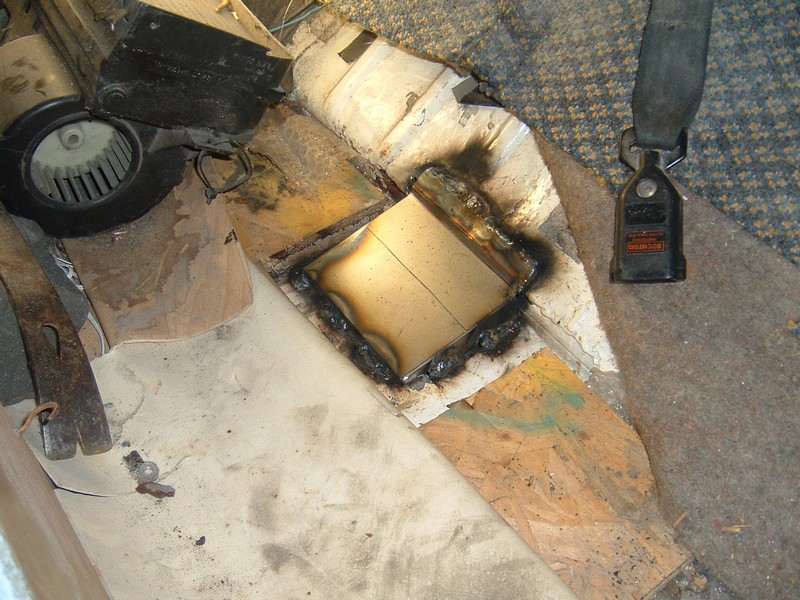

And boxed in





Also been playing about with the spit in a final push to get it finished

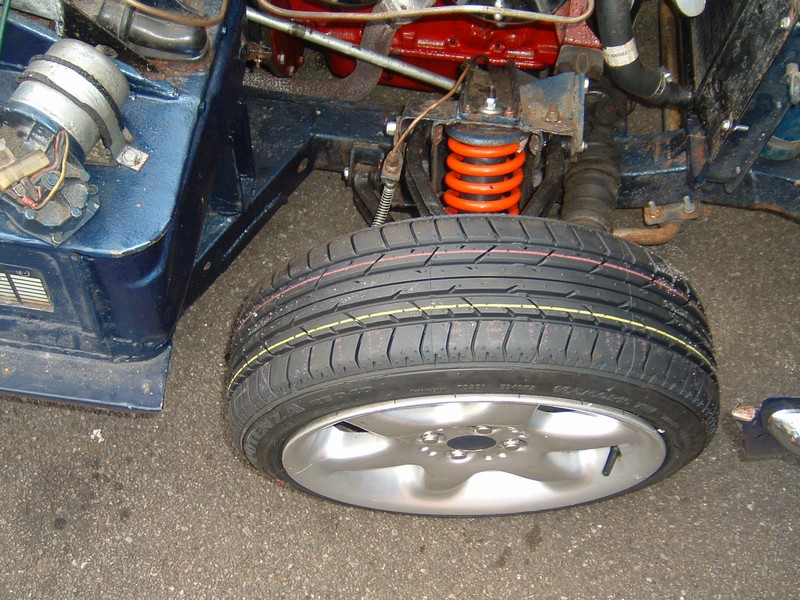

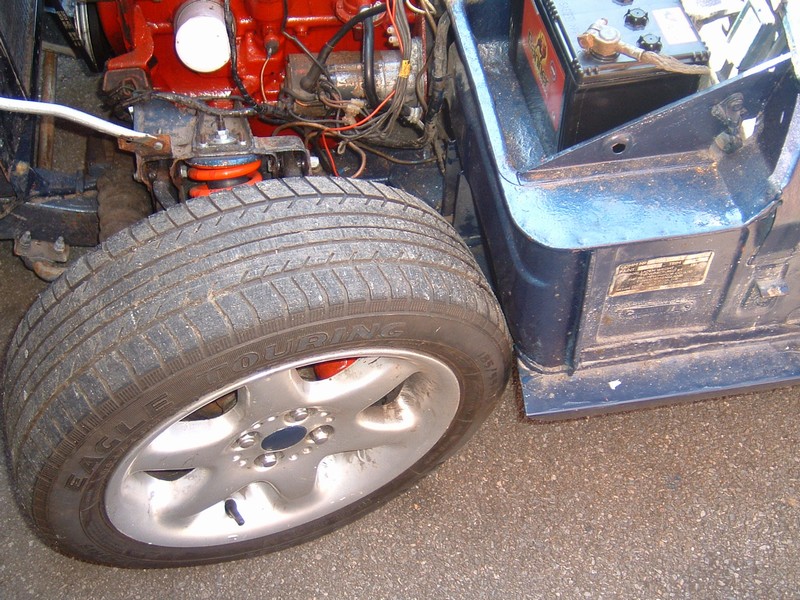

Issue with tyres fouling on bulkhead



Solved with smaller tyres



There is more progress and will hopefully be much more with deadline to get bus on the Road for May for my Niece's Prom ! But I think that is enough for now
_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[jp]

Coming soon in the next instalment... shiny new driveshaft spacers.... (said in a deep gravelly voice)





_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[Superleggo]

Good to see some progress JP. Nice looking Spit as well

[mychatype3]

good work going to be a fantastic Bay.
Kind regards mycha

[richbaker78]

Think its time you updated...heres a start

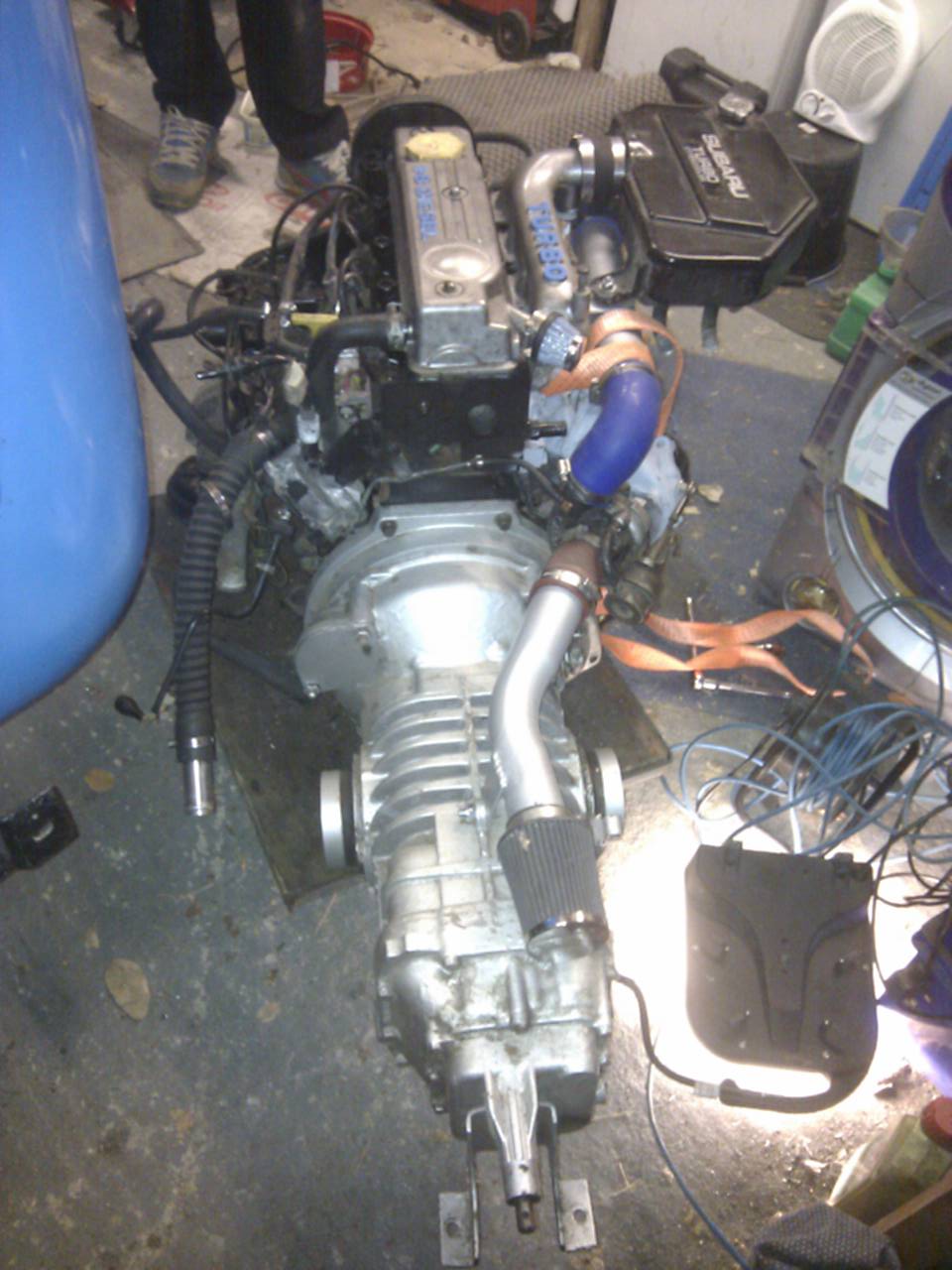

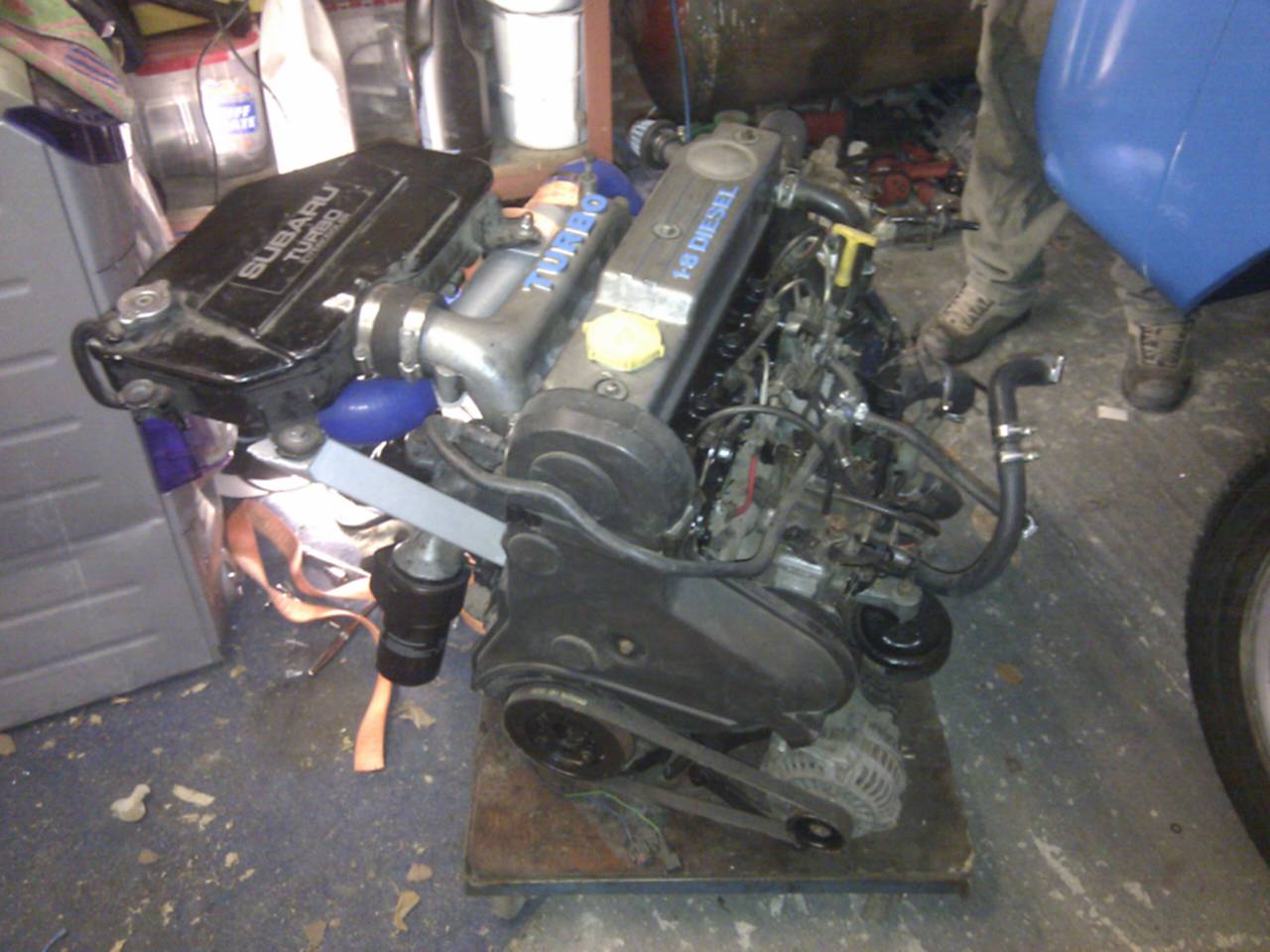

Engine Cleaned up and assembled.

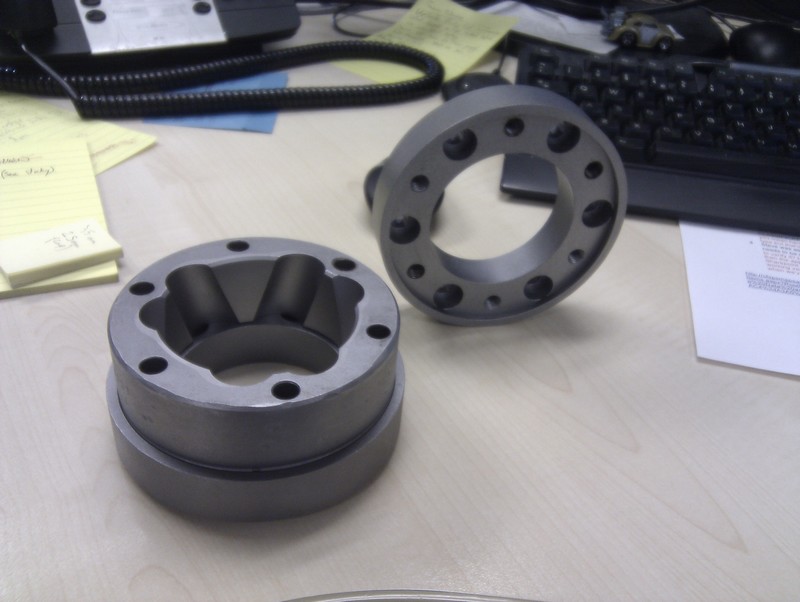

Gearbox has the new driveshaft spacer bolted onto it which works a treat.. big up SW Engineering for making these.


Steering reassembled after issue found with a bit of rubbing.. thought better to fix now rather than annoy me later. Also given a lick of paint


Some RB Handywork on scoop for Charge Cooler Rad

[jp]

Added comments to above.... but need to get my camera out and take some snaps of...

Engine in
Brakes all bled and working
Accelerator connected
D Shafts on
Clutch connected and now actually working hopefully.
Pipework all connected (and there is a lot of it)
Charge Cooler Pump mounted with all pipework done upto the Rad.

So Basically once scoop and CC rad fitted I'm hoping I should be able to fire it up using some crude wiring and take it for a spin ! Then it'll be a mission to sort all the wiring properly.
_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[steamo]

Awesome work look forward to seeing another Ford up and running!

Nearly time for my MOT again Did just over 2000 miles last year. Sorting interior at the mo for first big trip to a friends wedding in Sweden this summer. Hope it passes!! Also not looking forward to the fuel bill, could do with a diesel like you.

[jp]

Great news steamo on yer 2k last year looking forward to racking up some miles myself soon... not looking forward to the MOT with the amount of mods on my bus.. need to find a person who knows nothing about Type 2's.

We have Air poor mans air but should still be very useful for offroad/ speed bumps etc at low speeds.

Massive big up to Mycha for his advice and online support with this

Thanks to RB78 to help fit which took all of 30 mins

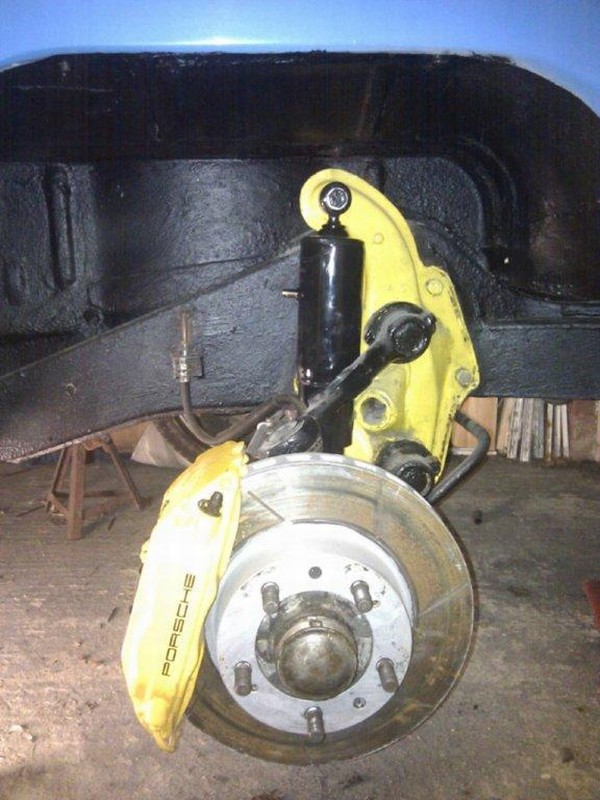

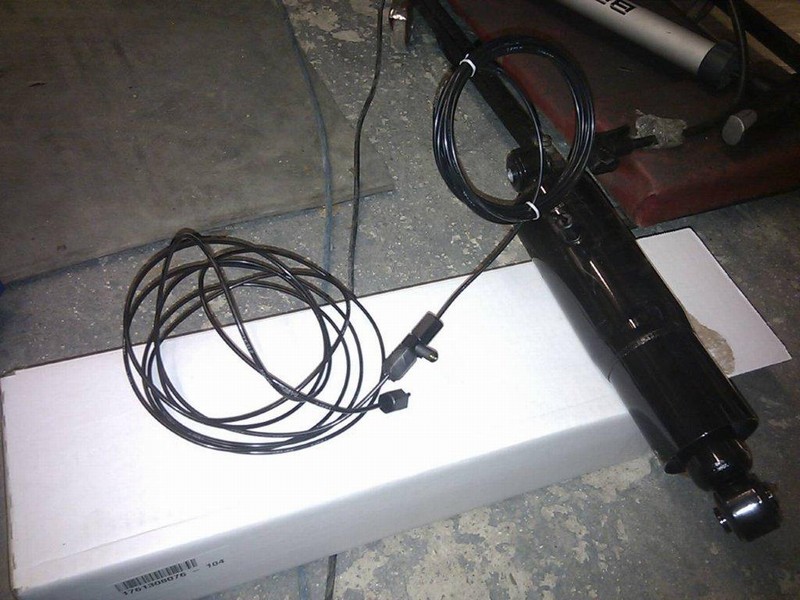

The Air Shox

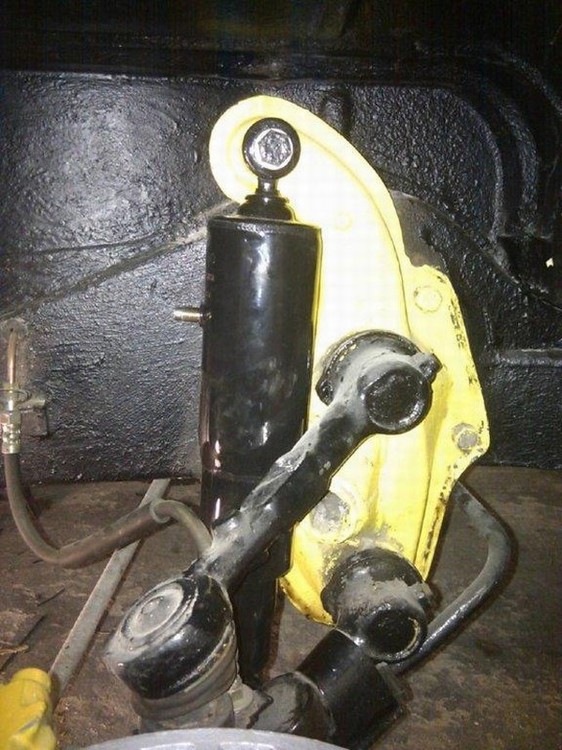

Straight bolt on replacement for orig shox just need a 2mm washer to get them straight.

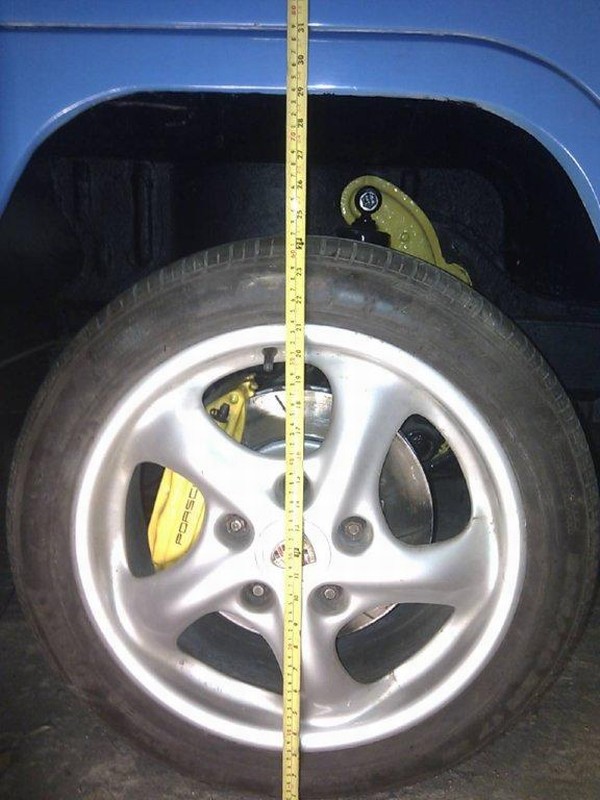

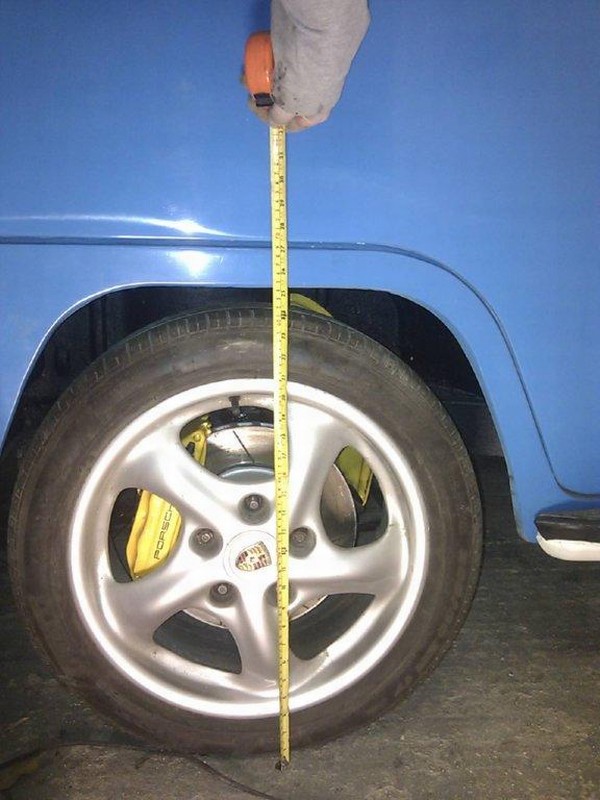

Dropped



Popped





Also RB's master piece that is the Charge Cooler Scoop all fitted up to the rad.

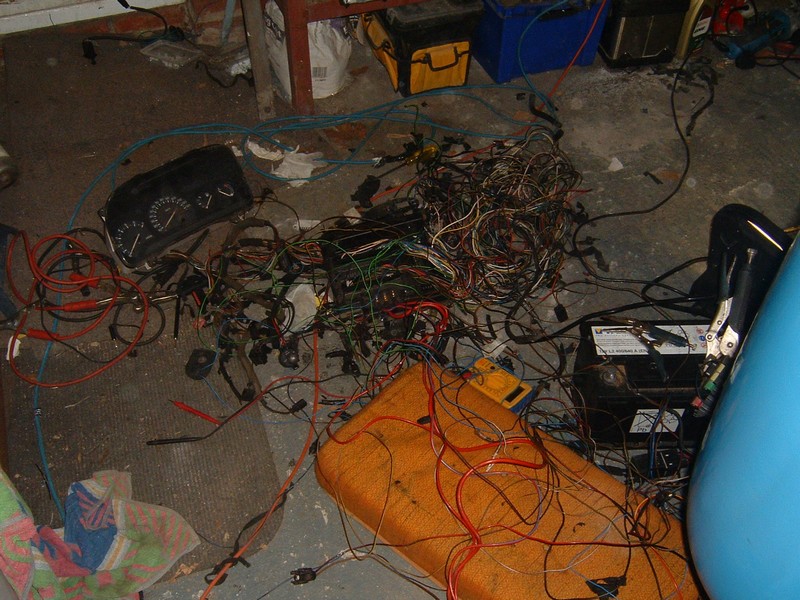

Spending a lot of time on wiring now which is not worthy of pics, picture a mass of old wires that need tidying new connectors, replacing etc.. I am able to start on the key now which good.. next stop lights then a blast up the road

Did I mention I drove it out the garage onto the driveway under it's own steam... first time it's done that in 6+ years ouch ! no reverse to get it back in though
_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[jp]

After too much head scratching on how to get a contact from my horn button to the relay I decided to buy a a remote controlled relay thing off ebay and use it to trigger the horn.



This is the fob which I removed the inners from



This is the inners




Wires Soldered on




This is the box which is triggered wired into the horn relay




Remote inners connected to horn button





_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[jp]

drum roll...........

A mere 7ish years in the making and the MOT man he say YEEEEEEEEEEEEEESSSSSSSSSSSSSSSSSS







_________________
1971 Devon Bay with 1800 Ford Turbo Diesel Engine (wip)
1983 VW Golf GTI Campaign
1979 Mini 1275 GT
2013 Scirocco TDI GT

[Obonobo]

Well done, looking great! Where's your first trip headed?
_________________
Greetings from Sietze
-------
Driving a '75 Bay with a EJ22 '93 and 091 6-rib box.

And it's a long time since it looked anything like this!

[jp]

Kwikfit to get the Tracking done

Plenty of little jobs left to do and will use it for commuting to work for a while to gain some confidence in it
_________________
